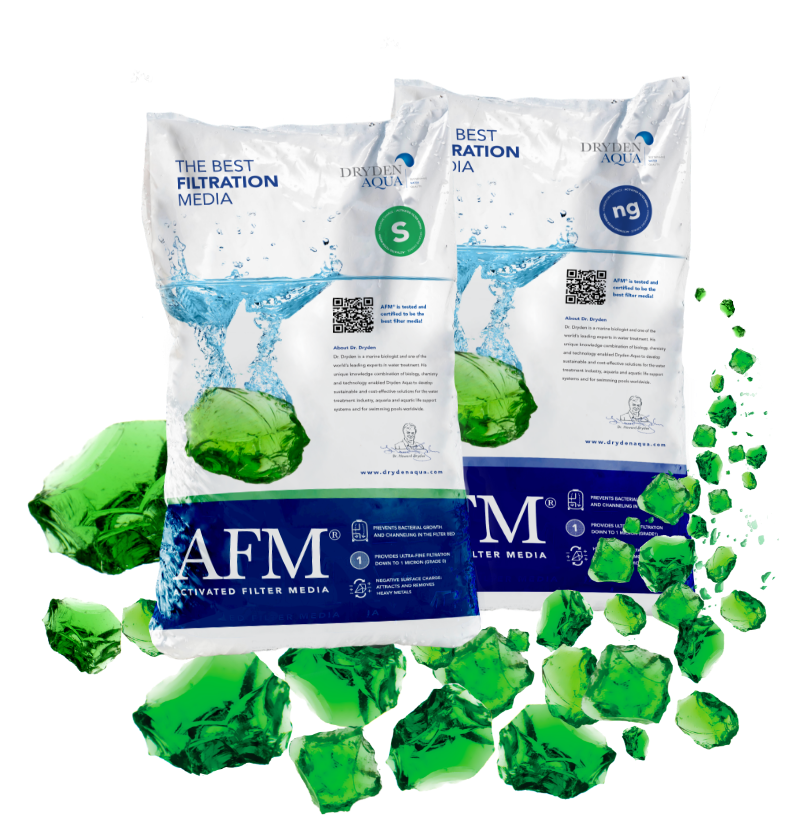

AFM® is manufactured by upcycling post-consumer green and brown glass bottles. AFM® is verified, by IFTS, to double the performance of sand filters without the need for additional investments in infrastructure.

AFM® is used in single or dual media filtration, with either gravity or pressure filters, for the treatment of ground, surface, sea and wastewater. Two different types of AFM® are produced in our factories: AFM® s (standard) and AFM® ng (next generation).

Both products are exposed to a unique 3-step activation process to become biofouling-resistant and gains superior filtration properties.

AFM Performance

Read more

AFM Product Range

Read more

AFM Certifications

Read more
Unique feature

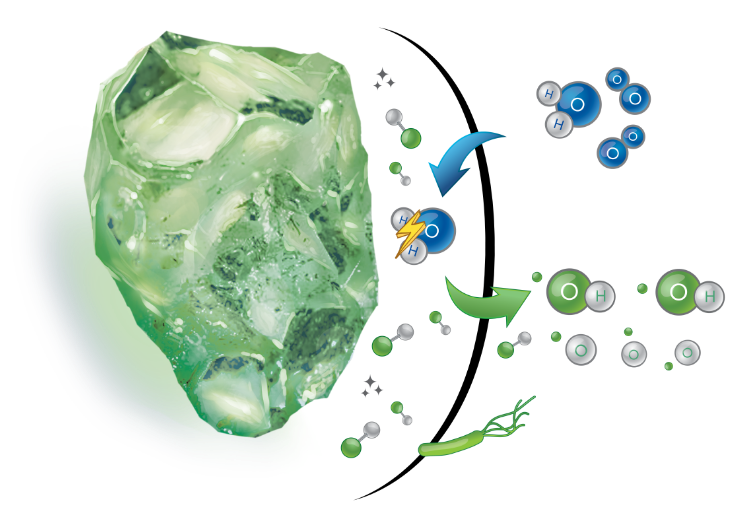

Biofouling-resistant surface

  • Does not support bacterial growth, eliminates clumping and channeling.
  • Reduces backwash water up to 50%, improving operation cost savings (OPEX).
  • Activated surface area amplifies catalytic reactions, generating free radicals to avoid biofouling on the AFM®’s surface.

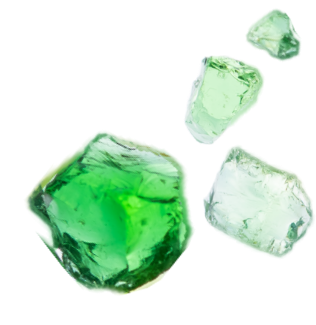

Increased surface area

AFM Grade 1 = 50.000 m² / 1‘000 kg (245 ft² per lb) * Sand 0.4 – 0.8mm = 3.000 m² / 1‘000 kg (15 ft² per lb)

  • The high surface area provides for the superior mechanical filtration properties and enhances adsorption of fine particles.
  • Consistent particle size distribution, shape, sphericity, effective size and uniformity coefficient for outstanding hydraulic properties.
  • Provides consistent >1 micron nominal particle filtration performance up to 98% and a life cycle >10 years.

Advanced adsorption properties

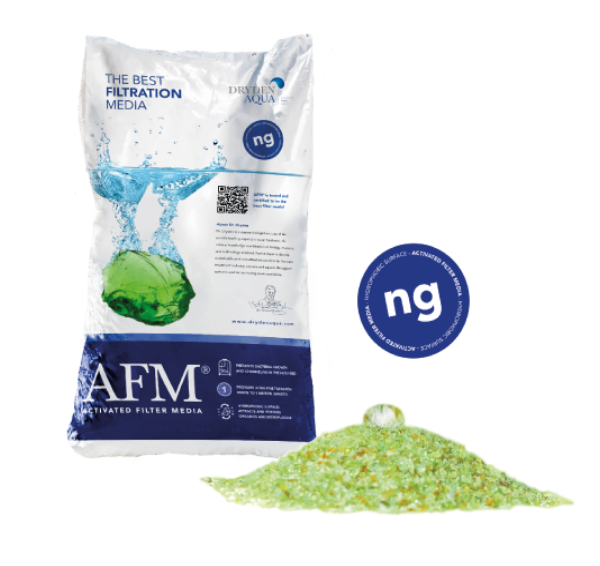

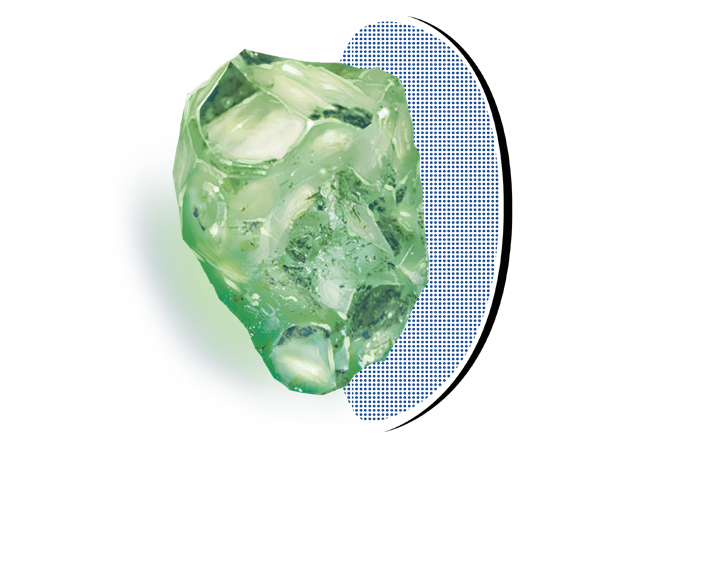

AFM® NG: HYDROPHOBIC SURFACE

  • Hydrophobic & non-polar
  • Biofouling-resistant
  • Filters 95% of all particles >1μm
  • Best for organics removal
  • Adsorbs oil & hydrocarbons, microplastics
  • Efficient filtration in hard and soft water
  • Not suitable for backwash with air scouring

  • Best filtration & organics removal

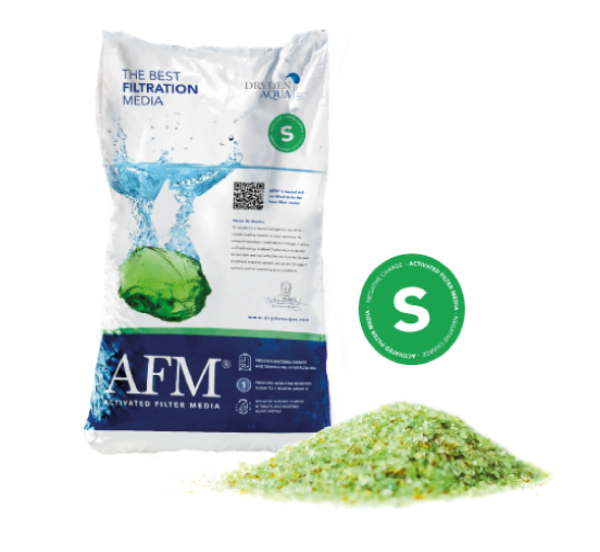

AFM® S: HIGH NEGATIVE SURFACE CHARGE

  • Hydrophilic & polar
  • Biofouling-resistant
  • Filters 95% of all particles >1μm
  • Best for heavy metals removal
  • Adsorbs cationic flocs & di-polar molecules
  • Efficient removal of oil in O&G applications
  • Suitable for backwash with air scouring

  • Best for heavy metals removal

Afm® performance

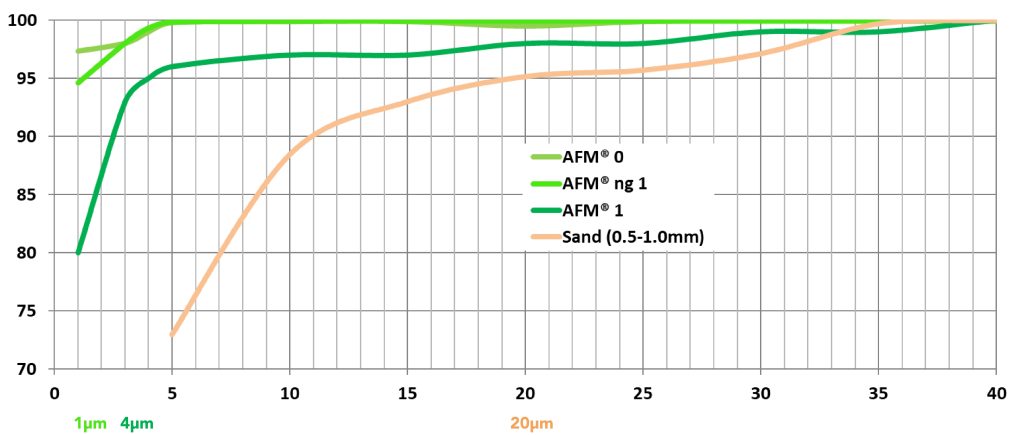

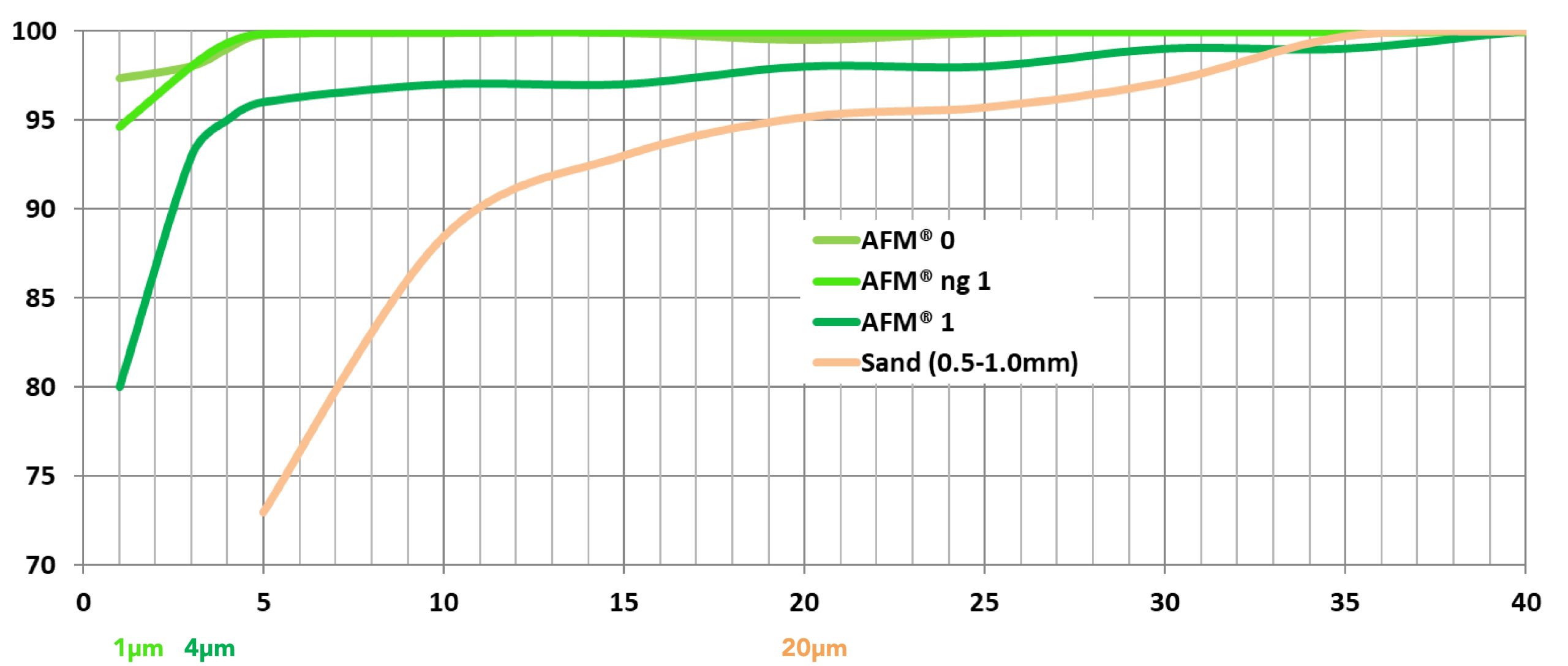

Filtration performance of AFM versus Sand at 20m/hr (8gpm/ft2) without flocculation

independently verified by IFTS

Removal performance (%)

Particle Size (μm)

AFM® s Grade 0 removes 98% of particles >1μm

AFM®ng Grade 1 removes 95% of particles >1μm

AFM® s Grade 1 removes 95% of particles >4μm

High quality silica sand removes 95% of particles >20μm

AFM® closes the gap between conventional media filtration and Ultrafiltration

Afm® Product Range

Grade
Type
Particle size mm / mesh
Function
0
AFM®'s
0.25 - 0.5 / 60 - 35
Extra fine filtration grade
1
AFM®'s/-ng*
0.4 - 0.8 / 40 - 22
Main filtration grade
DIN
0.7 - 1.2 / 10 - 5
AFM®'s/-ng
Special filter media for high TSS loads
2
AFM®'s/-ng*
0.7 - 2.0 / 25 - 16
Support and Filtration (ng) grade
3
AFM®'s
2.0 - 4.0 / 28 - 10
Support (layer) grade

AFM® Grade 0
is an extra fine filtration grade, providing a 98% particle removal efficiencybdown to 1μm without the use of coagulation and/or flocculation.

AFM® Grade 1
is our main filtration grade. AFM® ng removes 95% of all particles down to 1μm. Coagulation and flocculation may be used to further enhance filtration performance down to submicron.

AFM® DIN Grade
is used as single filtration media or above Grade 3 in selected water and wastewater treatment applications, removing 96% particles down to 4μm. AFM -s/-ng DIN can be used as single media in DynaSand® filters.

AFM® Grade 2
is used as a. support layer. AFM® ng Grade 2 acts as a support and filtration layer removing particles down to 5 μm.

AFM® Grade 3
3 is a support layer used to cover the laterals of a filter to ensure proper flow distribution during filtration and backwash of the filter.

NOTE:
In case of TSS >30 ppm or a turbidity >10 NTU, the use of an Anthracite layer on top of the AFM® bed may be considered to extend the run phase between backwashes

Afm® certifications

  • AFM® complies with EN17978, glass granulates, for treatment of water for human consumption
  • AFM® complies with the Directive (EU) 2020/2184 on the quality of water intended for human consumption
  • AFM® is approved in UK under regulation 31 of the Water Supply (Water Quality) regulations 2016 (as amended)
  • AFM® is certified by WQA to NSF/ANSI/CAN 50 and NSF/ANSI/CAN 61 & 372 Drinking Water Systems Components
  • AFM® is approved in Switzerland according to drinking water ordinace (TBDV) Annex 4, paragraph 4
  • AFM® is produced under certified HACCP principles for use in food and beverage production
  • Dryden Aqua is certified to integrated management control systems ISO-9001, ISO-14001, ISO-45001

Approved in UK and Switzerland for use public water supplies
